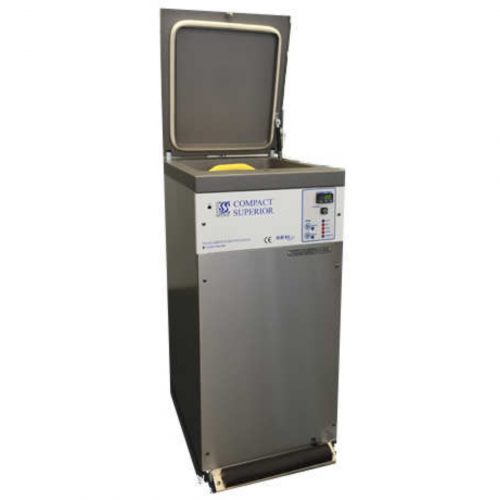

The Compact Superior 1 washes and disinfects utensils one at a time and is specially designed for the small nursing home where space is limited.
The CS1 provides an effective infection control barrier which protects residents and staff from the risk of cross infection and management from potential liabilities. All Stanbridge washer/disinfectors can include the DEOSCALE water treatment system to control limescale build-up and reduce maintenance.
Stanbridge utensil washer disinfectors are manufactured in compliance with the recommendations of British Standard 2745 and to meet the detail requirements of inspectors of the Water Supply Undertakings.
Stanbridge Ltd is approved under BS 5750 for quality assurance.
WRAS Approval No. 0310064 Internal break tank has a type ‘A’ air gap supply
Specifications
Size
Height 910mm (36”)
Width 435mm (18”)
Depth 660mm (26”)
Water Feed Supply Cold
Connection 1/2” BSP male parallel
Overflow 1x19mm (3/4”) bore. End must be visible. (UK requirement)
Waste 82mm (3”) ‘P’ or ‘S’ trap
Electrical 230V 50Hz 16A single phase Fuse – mains 16A – control 5A
Washing cycles
1. Normal wash cycles Wash – Disinfection at 80°C for 70 seconds – Rinse to cool
2. Super wash Pre flush – Wash – Disinfection at 80°C for 70 seconds – Rinse to cool
