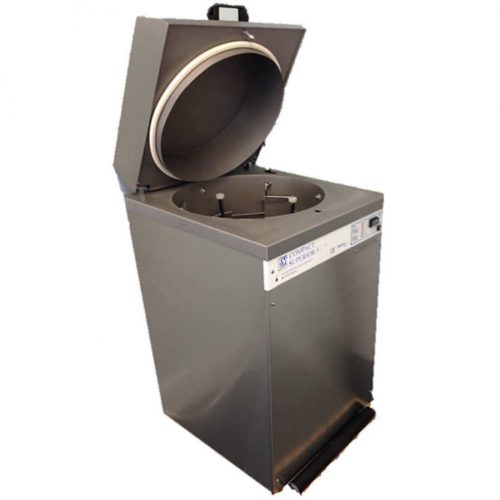

The CS3 HD WASHER / DISINFECTOR

The Compact Superior 3 HD multi-utensil machine is designed for the full bed occupancy and high dependency nursing homes which have peak loads and a high utensil volume.

The CS3 HD has the capacity to efficiently wash and disinfect 3 utensils in one operation, cutting water and heating costs, staff waiting time and utensil queueing

All Stanbridge washer/disinfectors can include the DEOSCALE water treatment system to control limescale build-up and reduce maintenance. Stanbridge utensil washer disinfectors are manufactured in compliance with the recommendations of British Standard 2745 and to meet the detail requirements of inspectors of the Water Supply Undertakings

Stanbridge Ltd is approved under BS 5750 for quality assurance.

WRAS Approval No. 0310064 Internal break tank has a type ‘A’ air gap supply



Specifications

Size
Height 1100mm (44”)
Width 600mm (24”)
Depth 710mm (28”)

Water Feed Supply Cold Feed x 2
Connection 1/2” BSP male parallel

Overflow 1x19mm (3/4”) bore. End must be visible (UK requirement).

Waste 82mm (3”) ‘P’ or ‘S’ trap

Electrical 230V 50Hz 16A single phase Fuse – mains 16A – control 5A

Washing cycles
1. Normal wash
Wash – Disinfection at 80°C for 70 seconds – Rinse to cool
2. Super Wash
Pre flush – Wash – Disinfection at 80°C for 70 seconds – Rinse to cool
