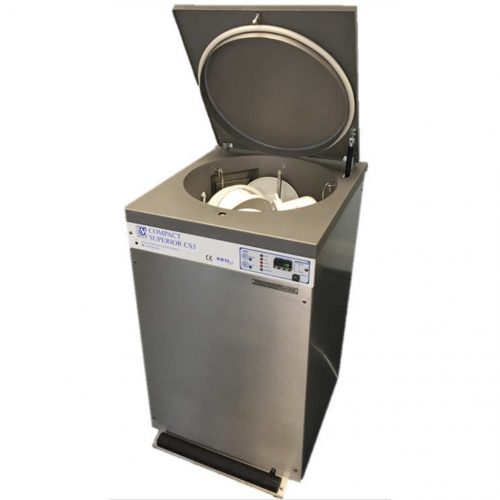

The Compact Superior 3 ST Commode Pot & Bottle machine is designed for the full bed occupancy and high dependency nursing homes which have peak loads and a high utensil volume.
The CS3 ST has the capacity to efficiently wash and disinfect 3 utensils in one operation, cutting water and heating costs and staff waiting time and utensil queueing. All Stanbridgewasher/disinfectors can include the DEOSCALE water treatment system to control limescale build-up and reduce maintenance.
Stanbridge utensil washer disinfectors are manufactured in compliance with the recom- mendations of British Standard 2745 and to meet the detail requirements of inspectors of the Water Supply Undertakings.
Stanbridge Ltd is approved under BS 5750 for quality assurance.
WRAS Approval No. 0310064 Internal break tank has a type ‘A’ air gap supply
Specifications
Size
Height 975mm (39”)
Width 600mm (24”)
Depth 710mm (28”)
Water Feed Supply Cold
Connection 1/2” BSP male parallel
Overflow 1x19mm (3/4”) bore. End must be visible(UK requirement).
Waste 82mm (3”) ‘P’ or ‘S’ trap
Electrical
Washing cycles
230V 50Hz 16A single phase Fuse – mains 16A – control 5A
1. Normal wash
Wash – Disinfection at 80°C for 70 seconds – Rinse to cool
2. Super Wash
Pre flush – Wash – Disinfection at 80°C for 70 seconds – Rinse to cool
